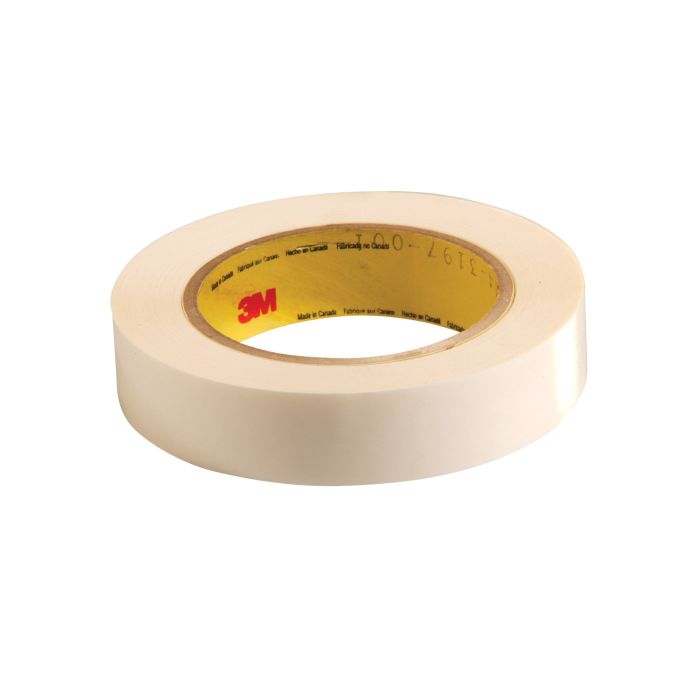

3M™ Double Coated Tape 444, Clear, 1 1/2 in x 36 yd, 3.9 mil, 24 Roll/Case

A Double Coated Tape for Foams and LSE Plastics

Excellent for textured plastics, foams, fabrics and coated papers, 3M™ Double Coated Tape 444 features 3M™ Adhesive 300 on a 0.5 mil polyester (PET) film carrier. The medium-firm acrylic adhesive delivers high initial and final adhesion for efficient laminating procedures. The durable polyester film carrier between the adhesive layers improves the handling and strength of the tape, and adds stability during processes such as die-cutting and slitting. The adhesive is applied at 1.4 mils on the liner side and 2 mils on the face side for effective wet-out. The 55# densified kraft paper release liner makes for fast, efficient application.

About 3M™ Adhesive 300

3M™ Adhesive 300 is a medium-firm acrylic adhesive system featuring both high initial adhesion and good UV and chemical resistance and strong holding power. The design of the adhesive results in high initial adhesion and good temperature performance. The formulation gives 3M™ Adhesive 300 a consistently strong bond across a range of temperatures up to 250°F/121°C short term.

Recommended Applications:

Medical diagnostic test strips Plastic film lamination/bonding Splicing Foam lamination

Gasket attachment

What is Double Coated Tape?

In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that is removed at the time of application. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in electronics, automotive, aerospace, general industrial, and fabrication markets.

Bringing Better Ideas to the Surface through Science

3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, these technologies help customers deliver competitive products to the market faster and more efficiently.

• Excellent for foam and gasket attachment, HSE and LSE plastics such as polyethylene
• Quick flowing adhesive delivers high initial adhesion for faster lamination
• 0.5 mil PET film carrier adds dimensional stability and easier handling during slitting and die-cutting
• 3M™ Adhesive 300 aggressively bonds to many surfaces, including plastics like polyethylene
• 55# 3.2 mil densified kraft liner makes for easy release
