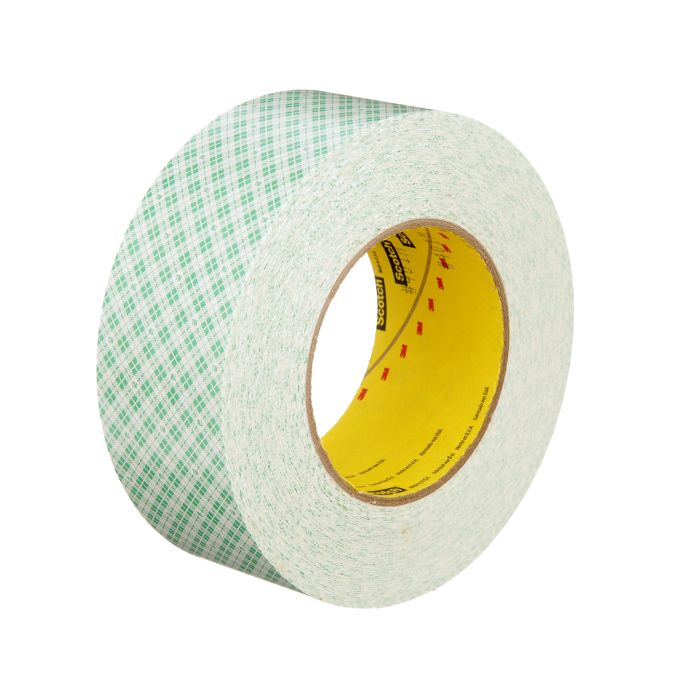

3M™ Double Coated Paper Tape 401M, Natural, 2 in x 36 yd, 9 mil, 24 Roll/Case

3M™ Double Coated Paper Tape 401M is a hand-tearable double coated paper tape featuring 3M™ Adhesive 860 and mounted on a paper liner. This robust 54 lb. densified kraft paper release liner is green and white plaid for easy identification and adds dimensional stability to the tape during processes such as die-cutting and automated dispensing. It allows for easy deployment, helps reduce edge roll and protects the tape from humidity extremes. Made with a solvent-free manufacturing process, this tape can also help meet environmental best practices and goals.

Enduring Bond

3M™ Adhesive 860 is a soft, rubber resin, pressure sensitive adhesive system. It provides high initial adhesion and good holding power to a wide variety of materials. This adhesive is ideal for initial application indoors and at room temperature applications, but when properly applied it then performs under a wide range of temperatures from -40°F / -40°C up to 150°F / 65°C. It also offers short term heat resistance up to 200°F / 93°C.

Recommended Applications

Mounting rubber or photopolymer printing plates Splicing and core starting of papers, foils, films and fabrics Attaching golf club grips

Temporary holding while parts are being finished in the milling process

What is Double Coated Tape?

In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts and hobby.

Bringing Better Ideas to the Surface through Science and Innovation

The 3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, these technologies help customers deliver competitive products to the market faster and more efficiently.

• QUICK GRAB: Made with a strong adhesive that gives an instant bond on a variety of substrates
• STRONG AND RELIABLE HOLD: A double-coated and thick construction offers a reliable hold while stabilizing projects
• MULTIPURPOSE APPLICATIONS: Ideal for splicing and core starting of papers, foils, films, and fabrics, golf club grip attachment, and more
• FOR A VARIETY OF INDUSTRIES: Useful in many industries, including construction, fabrication, and arts and crafts
• BUILT TO PERFORM: Offers a reliable application in temporary carpet attachment for trade shows and events
• WITHSTANDS ELEVATED TEMPERATURES: Can tolerate long-term use at a temperature up to 150 °F (66 °C) with short-term use up to 180 °F (82 °C)
