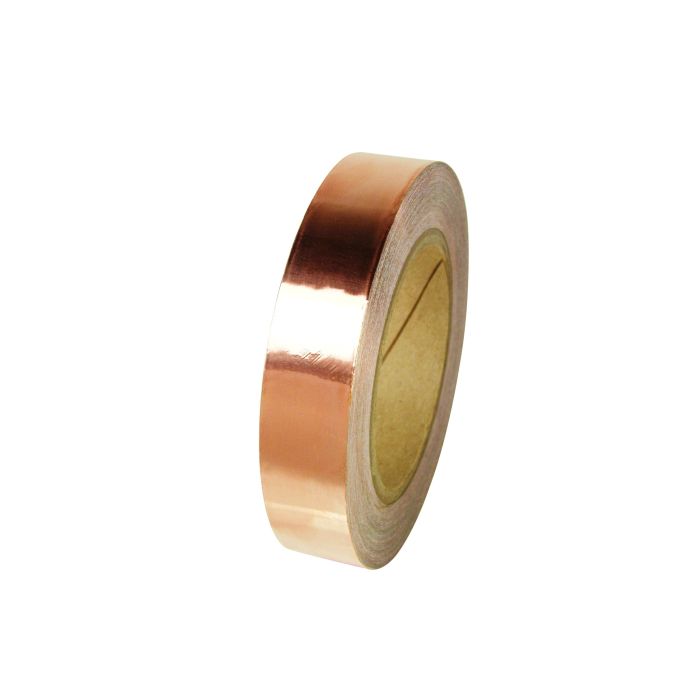

3M™ Copper Foil Tape 1126, 3/8 in x 36 yd (9.52 mm x 16.5 m), 24 Rolls/Case
3M™ EMI Copper Conductive Tape 1126 is a 3.5 mil thick, acrylic adhesive EMI shielding tape. This flame retardant tape is suitable for applications in industries like static charge draining and seaming shielded rooms. It withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). The tape is rated for 600V dry applications.
Special Price
$36.42
Regular Price
$42.85
| UPC | 00051135895108 |
|---|---|
| 3M ID | 7000132822 |
| Packaging | Roll |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Tape 1126 has rolled, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. This flame retardant, EMI/RFI shielding tape is suitable for use in electronic industry applications such as cable wrapping and providing surface contact to non solderable materials. UL Listed and RoHS 2011/65/EU Compliant.
- Highly conformable with a pressure-sensitive, acrylic adhesive
- Outstanding soldering ability
- Suitable for use in electronic industry applications
- Flame-retardant and has copper foil backing
- Rated for 600V applications
- Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7000132822 |
|---|---|
| Part number | 1126-3/8X36 |
| Global Product Hierarchy | Tapes > Foil Tapes > Copper Tapes |
| Backing (Carrier) Material | Copper Foil, Flat |
| Backing (Carrier) Thickness (Imperial) | 1.6 mil |
| Backing (Carrier) Thickness (Metric) | 0.04 mm |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | 3M™ |
| Country of Origin | Taiwan |
| Sales Unit | RO |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 0.37519685 |
| Base - Customary Length Dimension | 7.5 |
| Base - Customary Width Dimension | 7.5 |
| Base - Metric Gross Weight | 59.0 G |
| Base - Metric Height Dimension | 0.953 CM |
| Base - Metric Length Dimension | 19.05 CM |
| Base - Metric Width Dimension | 19.05 CM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Consumer - Billing Unit | ROL |
| Consumer - Customary Cubic Dimension | 21.11421545677737 ci |
| Consumer - Customary Gross Weight | 0.13007273468907776 lbs |
| Consumer - Customary Net Weight | 0.13007273468907776 lbs |
| Consumer - Customary Height Dimension | 0.37519685039370076 in |
| Consumer - Customary Length Dimension | 7.5 in |
| Consumer - Customary Width Dimension | 7.5 in |
| Consumer - Metric Cubic Dimension | 0.346 CDM |
| Consumer - Metric Net Weight | 59.0 G |
| Consumer - Metric Height Dimension | 0.953 CM |
| Consumer - Metric Length Dimension | 19.05 CM |
| Consumer - Metric Width Dimension | 19.05 CM |
| Consumer - Item Quantity | 1 |
| Consumer - Total Unit Quantity | 1 |
| Consumer - Previous Packaging Level Quantity | 1 |
| Consumer - Item Unit | RLS |
| Consumer - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 744.7497001293215 ci |
| Shipper - Customary Gross Weight | 3.61999034507569 lbs |
| Shipper - Customary Net Weight | 3.1217456325378667 lbs |
| Shipper - Customary Height Dimension | 10.590551181102363 in |
| Shipper - Customary Length Dimension | 8.385826771653543 in |
| Shipper - Customary Width Dimension | 8.385826771653543 in |
| Shipper - Metric Cubic Dimension | 12204.261 CCM |
| Shipper - Metric Weight | 1.642 KG |
| Shipper - Metric Net Weight | 1.416 KG |
| Shipper - Metric Height Dimension | 26.9 CM |
| Shipper - Metric Length Dimension | 21.3 CM |
| Shipper - Metric Width Dimension | 21.3 CM |
| Shipper - Item Quantity | 24 |
| Shipper - Total Unit Quantity | 24 |
| Shipper - Previous Packaging Level Quantity | 24 |
| Shipper - Previous Packaging Level Unit | BAG |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 95592.47464951623 ci |
| Pallet - Customary Gross Weight | 392.4228266890821 lbs |
| Pallet - Customary Net Weight | 312.17456325378663 lbs |
| Pallet - Customary Height Dimension | 47.24409448818898 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1566.48 CDM |
| Pallet - Metric Net Weight | 141.6 KG |
| Pallet - Metric Height Dimension | 120.0 CM |
| Pallet - Metric Length Dimension | 122.0 CM |
| Pallet - Metric Width Dimension | 107.0 CM |
| Pallet - Item Quantity | 2400 |
| Pallet - Total Unit Quantity | 2400 |
| Pallet - Previous Packaging Level Quantity | 100 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 25 |
