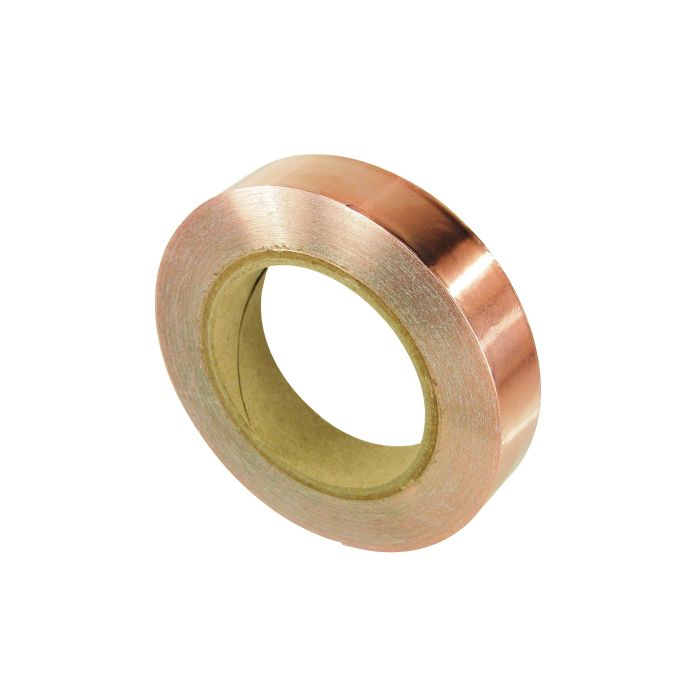

3M™ Copper Foil Tape 1125, 3/4 in x 36yd (19,05 mm x 33 m), 12 Rolls/Case
3M™ Copper Foil EMI Shielding Tape 1125 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for EMI/RFI shielding applications, such as the shielding of small, electromagnetic components and the repair and modification of printed wiring boards. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
Special Price
$46.04
Regular Price
$54.17
| UPC | 00051128577127 |
|---|---|
| 3M ID | 7010397879 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ EMI Shielding Tape 1125 has a rolled, copper foil backing with a pressure sensitive, acrylic adhesive that ensures firm adherence. This flame retardant tape is designed for flat conductor assemblies, prototype designs and the supplementary shielding of joints/seams and the shielding of cable splices. UL Listed and RoHS 2011/65/EU Compliant.
- Comes on a removable liner for easy die-cutting and handling
- Suitable for EMI/RFI shielding applications
- Flame-retardant
- Rated for 600V applications
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7010397879 |
|---|---|
| Part number | 1125 3/4"X36YD |
| Global Product Hierarchy | Tapes > Foil Tapes > Copper Tapes |
| Backing (Carrier) Material | Copper Foil, Flat |
| Backing (Carrier) Thickness (Imperial) | 2.8 mil |
| Backing (Carrier) Thickness (Metric) | 0.071 mm |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | Taiwan |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 317.514 G |
| Base - Metric Height Dimension | 127.0 MM |
| Base - Metric Length Dimension | 19.202 MM |
| Base - Metric Width Dimension | 127.0 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 18.917360669367007 ci |
| Unit of Use - Customary Gross Weight | 0.6999985471536923 lbs |
| Unit of Use - Customary Net Weight | 0.6999676824369864 lbs |
| Unit of Use - Customary Height Dimension | 5.0 in |
| Unit of Use - Customary Length Dimension | 0.7559842519685039 in |
| Unit of Use - Customary Width Dimension | 5.0 in |
| Unit of Use - Metric Cubic Dimension | 0.31 CDM |
| Unit of Use - Metric Net Weight | 317.5 G |
| Unit of Use - Metric Height Dimension | 127.0 MM |
| Unit of Use - Metric Length Dimension | 19.202 MM |
| Unit of Use - Metric Width Dimension | 127.0 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 734.6616819217891 ci |
| Shipper - Customary Gross Weight | 8.485592471495938 lbs |
| Shipper - Customary Net Weight | 8.399612189243836 lbs |
| Shipper - Customary Height Dimension | 10.25 in |
| Shipper - Customary Length Dimension | 8.68779527559055 in |
| Shipper - Customary Width Dimension | 8.25 in |
| Shipper - Metric Cubic Dimension | 12038.948 CCM |
| Shipper - Metric Weight | 3.849 KG |
| Shipper - Metric Net Weight | 3.81 KG |
| Shipper - Metric Height Dimension | 26.035 CM |
| Shipper - Metric Length Dimension | 22.067 CM |
| Shipper - Metric Width Dimension | 20.955 CM |
| Shipper - Item Quantity | 12 |
| Shipper - Total Unit Quantity | 12 |
| Shipper - Previous Packaging Level Quantity | 12 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 92736.00200743708 ci |
| Pallet - Customary Gross Weight | 883.9985557958129 lbs |
| Pallet - Customary Net Weight | 839.9612189243836 lbs |
| Pallet - Customary Height Dimension | 46.0 in |
| Pallet - Customary Length Dimension | 48.0 in |
| Pallet - Customary Width Dimension | 42.0 in |
| Pallet - Metric Cubic Dimension | 1519670.8 CCM |
| Pallet - Metric Net Weight | 381.0 KG |
| Pallet - Metric Height Dimension | 116.84 CM |
| Pallet - Metric Length Dimension | 121.92 CM |
| Pallet - Metric Width Dimension | 106.68 CM |
| Pallet - Item Quantity | 1200 |
| Pallet - Total Unit Quantity | 1200 |
| Pallet - Previous Packaging Level Quantity | 100 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 25 |
