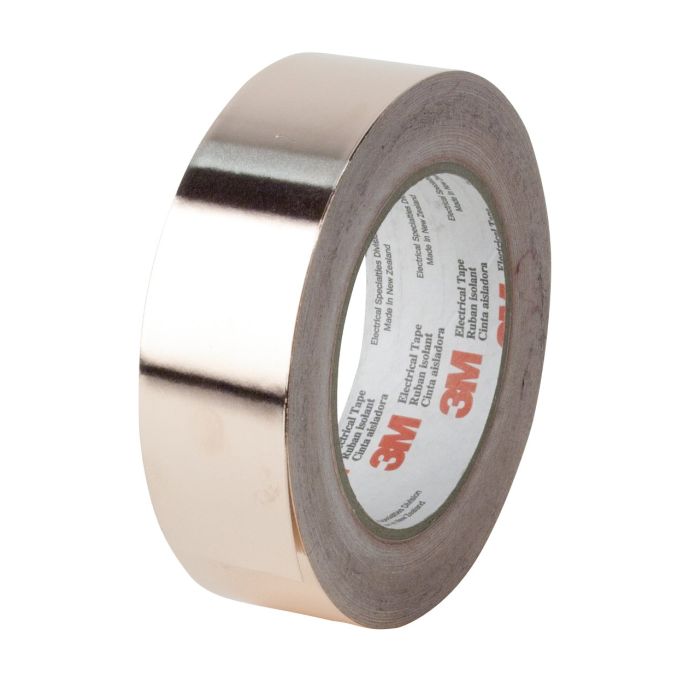

3M™ Copper Foil EMI Shielding Tape 1194, 2 in x 36 yd, 3 in Paper Core, 5 Rolls/Case
3M™ Copper Foil EMI Shielding Tape 1194 is a 2.6 mil thick acrylic adhesive shielding tape. This flame retardant tape is suitable for applications that require grounding, EMI shielding and economical, electrical bonding. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
Special Price
$185.71
Regular Price
$218.49
| UPC | 00051138493288 |
|---|---|
| 3M ID | 7010350281 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ EMI Shielding Tape 1194 has a deadsoft, copper foil backing with an aggressive, pressure sensitive, non conductive, acrylic adhesive that ensures firm adherence. It offers excellent resistance against oxidation and discoloration and its solderable backing makes it an ideal choice for applications like connectors, cable shielding and electrostatic shielding between transformer windings. UL Listed and RoHS 2011/65/EU Compliant.
- Non-conductive, acrylic adhesive offers optimized adherence
- Removable liner for easy die-cutting and handling
- Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
- Rated for 600V applications
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7010350281 |
|---|---|
| Part number | 1191 2"X36YD |
| Global Product Hierarchy | Tapes > Foil Tapes > Copper Tapes |
| Backing (Carrier) Material | Copper Foil |
| Backing (Carrier) Thickness (Imperial) | 1.4 mil |
| Backing (Carrier) Thickness (Metric) | 0.035 mm |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | Taiwan |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 0.85 KG |
| Base - Metric Height Dimension | 127.0 MM |
| Base - Metric Length Dimension | 50.8 MM |
| Base - Metric Width Dimension | 127.0 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 49.97844641358574 ci |
| Unit of Use - Customary Gross Weight | 1.8739292285714595 lbs |
| Unit of Use - Customary Net Weight | 1.8739292285714595 lbs |
| Unit of Use - Customary Height Dimension | 5.0 in |
| Unit of Use - Customary Length Dimension | 2.0 in |
| Unit of Use - Customary Width Dimension | 5.0 in |
| Unit of Use - Metric Cubic Dimension | 0.819 CDM |
| Unit of Use - Metric Net Weight | 0.85 KG |
| Unit of Use - Metric Height Dimension | 127.0 MM |
| Unit of Use - Metric Length Dimension | 50.8 MM |
| Unit of Use - Metric Width Dimension | 127.0 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1027.1454361806361 ci |
| Shipper - Customary Gross Weight | 10.657145754016982 lbs |
| Shipper - Customary Net Weight | 9.369646142857297 lbs |
| Shipper - Customary Height Dimension | 14.606299212598426 in |
| Shipper - Customary Length Dimension | 8.385826771653543 in |
| Shipper - Customary Width Dimension | 8.385826771653543 in |
| Shipper - Metric Cubic Dimension | 16831.898 CCM |
| Shipper - Metric Weight | 4.834 KG |
| Shipper - Metric Net Weight | 4.25 KG |
| Shipper - Metric Height Dimension | 37.1 CM |
| Shipper - Metric Length Dimension | 21.3 CM |
| Shipper - Metric Width Dimension | 21.3 CM |
| Shipper - Item Quantity | 5 |
| Shipper - Total Unit Quantity | 5 |
| Shipper - Previous Packaging Level Quantity | 5 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 98797.44168937157 ci |
| Pallet - Customary Gross Weight | 835.551973680686 lbs |
| Pallet - Customary Net Weight | 702.7234607142973 lbs |
| Pallet - Customary Height Dimension | 48.818897637795274 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.619 M3 |
| Pallet - Metric Net Weight | 318.75 KG |
| Pallet - Metric Height Dimension | 1.24 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 375 |
| Pallet - Total Unit Quantity | 375 |
| Pallet - Previous Packaging Level Quantity | 75 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 25 |
