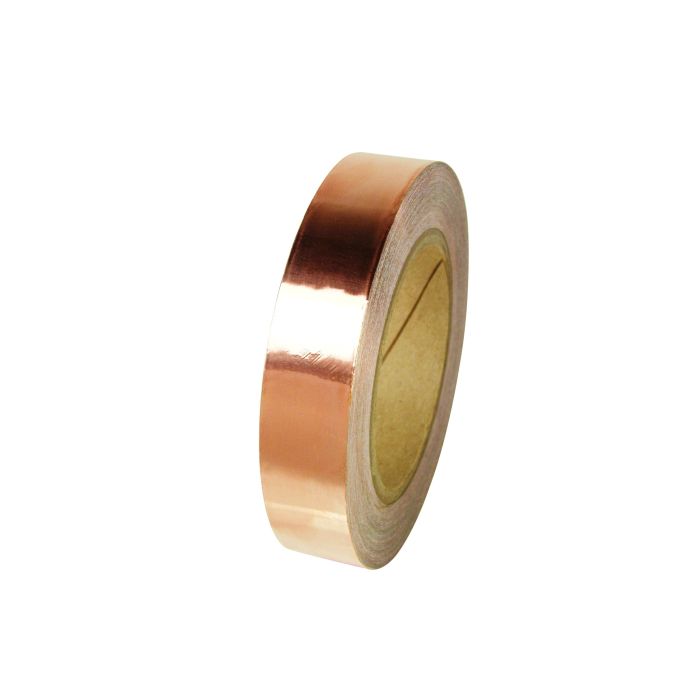

3M™ Copper Foil EMI Shielding Tape 1126, 6 in x 36 yd, Roll, 2 Rolls/Case
3M™ EMI Copper Conductive Tape 1126 is a 3.5 mil thick, acrylic adhesive EMI shielding tape. This flame retardant tape is suitable for applications in industries like static charge draining and seaming shielded rooms. It withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). The tape is rated for 600V dry applications.
Special Price
$571.40
Regular Price
$672.24
| UPC | 00051128566510 |
|---|---|
| 3M ID | 7000133153 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Tape 1126 has rolled, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. This flame retardant, EMI/RFI shielding tape is suitable for use in electronic industry applications such as cable wrapping and providing surface contact to non solderable materials. UL Listed and RoHS 2011/65/EU Compliant.
- Highly conformable with a pressure-sensitive, acrylic adhesive
- Outstanding soldering ability
- Suitable for use in electronic industry applications
- Flame-retardant and has copper foil backing
- Rated for 600V applications
- Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7000133153 |
|---|---|
| Part number | 1126 6"X36YD |
| Global Product Hierarchy | Tapes > Foil Tapes > Copper Tapes |
| Backing (Carrier) Material | Copper Foil, Flat |
| Backing (Carrier) Thickness (Imperial) | 1.4 mil |
| Backing (Carrier) Thickness (Metric) | 0.035 mm |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | Taiwan |
| Sales Unit | RO |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Customary Length Dimension | 36.0 LNYD |
| Base - Customary Width Dimension | 6.0 INCH |
| Base - Metric Gross Weight | 318.2 G |
| Base - Metric Length Dimension | 32.918 M |
| Base - Metric Width Dimension | 0.152 M |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 513.5727791140622 ci |
| Unit of Use - Customary Gross Weight | 0.7015109182722805 lbs |
| Unit of Use - Customary Net Weight | 0.20106158311260836 lbs |
| Unit of Use - Metric Cubic Dimension | 8415.95 CCM |
| Unit of Use - Metric Net Weight | 91.2 G |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1027.1454361806361 ci |
| Shipper - Customary Gross Weight | 1.403021836544561 lbs |
| Shipper - Customary Net Weight | 0.4021231662252167 lbs |
| Shipper - Customary Height Dimension | 14.606299212598426 in |
| Shipper - Customary Length Dimension | 8.385826771653543 in |
| Shipper - Customary Width Dimension | 8.385826771653543 in |
| Shipper - Metric Cubic Dimension | 16831.898 CCM |
| Shipper - Metric Weight | 636.4 G |
| Shipper - Metric Net Weight | 182.4 G |
| Shipper - Metric Height Dimension | 37.1 CM |
| Shipper - Metric Length Dimension | 21.3 CM |
| Shipper - Metric Width Dimension | 21.3 CM |
| Shipper - Item Quantity | 2 |
| Shipper - Total Unit Quantity | 2 |
| Shipper - Previous Packaging Level Quantity | 2 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 98797.44168937157 ci |
| Pallet - Customary Gross Weight | 141.09584779832164 lbs |
| Pallet - Customary Net Weight | 30.159237466891252 lbs |
| Pallet - Customary Height Dimension | 48.818897637795274 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.619 M3 |
| Pallet - Metric Net Weight | 13.68 KG |
| Pallet - Metric Height Dimension | 1.24 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 150 |
| Pallet - Total Unit Quantity | 150 |
| Pallet - Previous Packaging Level Quantity | 75 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 25 |
