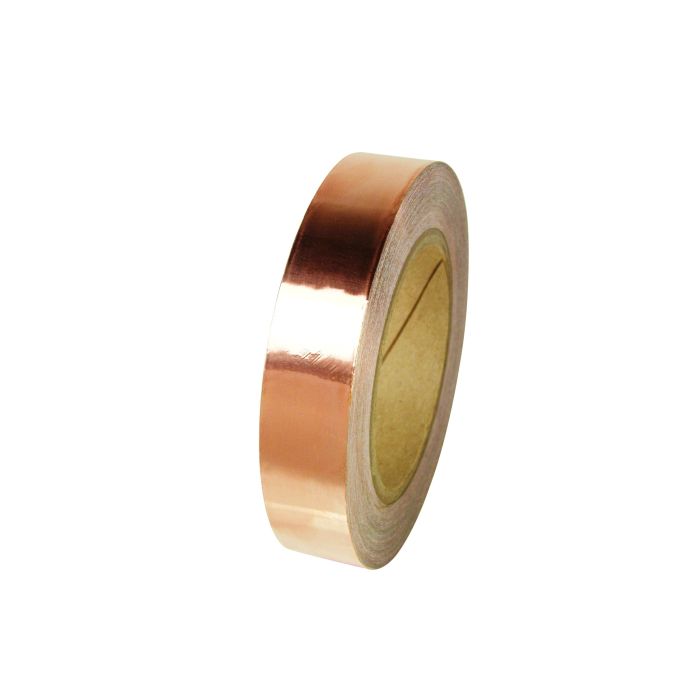

3M™ Copper Foil EMI Shielding Tape 1126, 1/2 in x 36 yd, Roll, 18 Rolls/Case
3M™ EMI Copper Conductive Tape 1126 is a 3.5 mil thick, acrylic adhesive EMI shielding tape. This flame retardant tape is suitable for applications in industries like static charge draining and seaming shielded rooms. It withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). The tape is rated for 600V dry applications.
Special Price
$48.59
Regular Price
$57.17
| UPC | 00051128559024 |
|---|---|
| 3M ID | 7010297482 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Tape 1126 has rolled, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. This flame retardant, EMI/RFI shielding tape is suitable for use in electronic industry applications such as cable wrapping and providing surface contact to non solderable materials. UL Listed and RoHS 2011/65/EU Compliant.
- Highly conformable with a pressure-sensitive, acrylic adhesive
- Outstanding soldering ability
- Suitable for use in electronic industry applications
- Flame-retardant and has copper foil backing
- Rated for 600V applications
- Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7010297482 |
|---|---|
| Part number | 1126 1/2"X36YD |
| Global Product Hierarchy | Tapes > Foil Tapes > Copper Tapes |
| Backing (Carrier) Material | Copper Foil, Flat |
| Backing (Carrier) Thickness (Imperial) | 1.6 mil |
| Backing (Carrier) Thickness (Metric) | 0.04 mm |
| Color Family | Brown |
| Material | Smooth Copper Foil |
| Product Color | Copper |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | Taiwan |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 197.766 G |
| Base - Metric Height Dimension | 12.543 CM |
| Base - Metric Length Dimension | 1.27 CM |
| Base - Metric Width Dimension | 12.543 CM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 12.192849188847983 ci |
| Unit of Use - Customary Gross Weight | 0.435999397432545 lbs |
| Unit of Use - Customary Net Weight | 0.435999397432545 lbs |
| Unit of Use - Customary Height Dimension | 4.938188976377953 in |
| Unit of Use - Customary Length Dimension | 0.5 in |
| Unit of Use - Customary Width Dimension | 4.938188976377953 in |
| Unit of Use - Metric Cubic Dimension | 199.805 CCM |
| Unit of Use - Metric Net Weight | 197.766 G |
| Unit of Use - Metric Height Dimension | 12.543 CM |
| Unit of Use - Metric Length Dimension | 1.27 CM |
| Unit of Use - Metric Width Dimension | 12.543 CM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 734.1156414596294 ci |
| Shipper - Customary Gross Weight | 7.9299989106959625 lbs |
| Shipper - Customary Net Weight | 7.84798915378581 lbs |
| Shipper - Metric Cubic Dimension | 12.03 CDM |
| Shipper - Metric Weight | 3596.987 G |
| Shipper - Metric Net Weight | 3559.788 G |
| Shipper - Metric Height Dimension | 2.603 DM |
| Shipper - Metric Length Dimension | 2.206 DM |
| Shipper - Metric Width Dimension | 2.095 DM |
| Shipper - Item Quantity | 18 |
| Shipper - Total Unit Quantity | 18 |
| Shipper - Previous Packaging Level Quantity | 18 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 92736.00200743708 ci |
| Pallet - Customary Gross Weight | 827.9989365782321 lbs |
| Pallet - Customary Net Weight | 784.7993563031054 lbs |
| Pallet - Customary Height Dimension | 46.0 in |
| Pallet - Customary Length Dimension | 48.0 in |
| Pallet - Customary Width Dimension | 42.0 in |
| Pallet - Metric Cubic Dimension | 1519670.8 CCM |
| Pallet - Metric Net Weight | 355.979 KG |
| Pallet - Metric Height Dimension | 116.84 CM |
| Pallet - Metric Length Dimension | 121.92 CM |
| Pallet - Metric Width Dimension | 106.68 CM |
| Pallet - Item Quantity | 1800 |
| Pallet - Total Unit Quantity | 1800 |
| Pallet - Previous Packaging Level Quantity | 100 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 25 |
