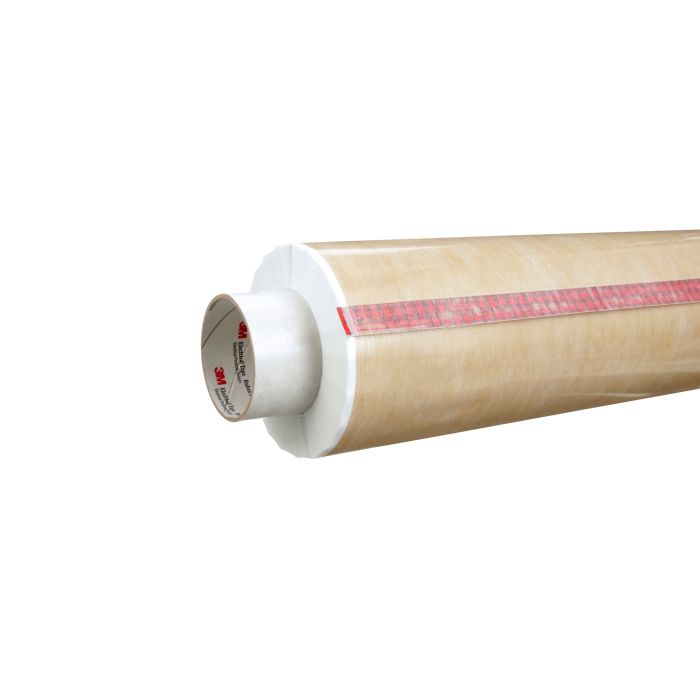

3M™ Composite Film Electrical Tape 44, 23-1/2 in x 90 yd, Log Roll Untrimmed, 1 Roll/Case
3M™ Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
Special Price
$551.23
Regular Price
$648.50
| UPC | 00051138527105 |
|---|---|
| 3M ID | 7000036239 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Composite Film Electrical Tape 44 features a combination of polyester web and polyester film coated with pressure sensitive rubber thermosetting adhesive. This tape is resistant to heat, oxidation, solvents and oils.
The pressure-sensitive, thermosetting rubber adhesive offers strong adherence and helps make this tape excellent for stick wound coils and transformers. It also protects start wires, leads, terminal strips, insulation paper, and end turns. This tape requires no heat, preparation or moisture before application.
Tape is UL510A Standard, Category OANZ2, File No. E17385, CSA Certified, Standard C22.2 No. 66, File No. 093411, Class 9052-30. For more details on regulatory compliance, visit www.3m.com/regs.
When you need an electrical tape that's tough, puncture-resistant, and has outstanding electrical properties, use the 3M™ Composite Film Electrical Tape 44.
- COMMON USE: For use in applications such as stick-wound coil/transformer and in bobbin-wound coils for banding, anchoring and insulating
- TOUGH DURABILITY: Puncture-resistant and offers great electrical properties
- NO ADDITIONAL TOOLS NEEDED: No heat, moisture or other preparation is needed to apply adhesive
- TEMPERATURE RANGE: Continuous operation not exceeding 130 °C (266 °F) per UL and CSA listings
- COMPLIANCE: UL510A Standard, Category OANZ2, File No. E17385; CSA Certified, Standard C22.2 No. 66, File No. 093411, Class 9052-30
- STABILITY: 5-year shelf life (from date of manufacture)
- COMPLIANCE INFORMATION: For more compliance information, visit www.3m.com/regs
| 3M ID | 7000036239 |
|---|---|
| Part number | 44LOG 23.5"X90YD |
| Keywords | 3m composite film electrical tape 44 23-1/2 in log roll untrimmed halogen edge purpose insulation anchoring bonding coil motor transformer 600 volts temperature range polyester rubber adhesive heat oxidation solvent oil puncture resistant ul listed |
| Global Product Hierarchy | Tapes > Electrical Tapes > Polyester Electrical Tapes |
| Application | Insulation |
| Backing (Carrier) Material | Polyester |
| Backing (Carrier) Thickness (Metric) | 0.089 mm |
| Color Family | Transparent |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 5.0 Year |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 0 |
| Base - Billing Unit | ROL |
| Base - Customary Length Dimension | 90.0 LNYD |
| Base - Customary Width Dimension | 23.5 INCH |
| Base - Metric Gross Weight | 9.344 KG |
| Base - Metric Length Dimension | 82.296 M |
| Base - Metric Width Dimension | 0.596 M |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 2388.931293610619 ci |
| Unit of Use - Customary Gross Weight | 20.59999377855496 lbs |
| Unit of Use - Customary Net Weight | 18.265298422017107 lbs |
| Unit of Use - Metric Cubic Dimension | 39147.57 CCM |
| Unit of Use - Metric Net Weight | 8.285 KG |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 2388.931293610619 ci |
| Shipper - Customary Gross Weight | 20.59999377855496 lbs |
| Shipper - Customary Net Weight | 18.265298422017107 lbs |
| Shipper - Customary Height Dimension | 9.094488188976378 in |
| Shipper - Customary Length Dimension | 31.771653543307085 in |
| Shipper - Customary Width Dimension | 8.26771653543307 in |
| Shipper - Metric Cubic Dimension | 39147.57 CCM |
| Shipper - Metric Weight | 9.344 KG |
| Shipper - Metric Net Weight | 8.285 KG |
| Shipper - Metric Height Dimension | 0.231 M |
| Shipper - Metric Length Dimension | 0.807 M |
| Shipper - Metric Width Dimension | 0.21 M |
| Shipper - Item Quantity | 1 |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 81405.67462237287 ci |
| Pallet - Customary Gross Weight | 524.7001840000087 lbs |
| Pallet - Customary Net Weight | 438.3671621284106 lbs |
| Pallet - Customary Height Dimension | 40.94488188976378 in |
| Pallet - Customary Length Dimension | 47.63779527559055 in |
| Pallet - Customary Width Dimension | 41.732283464566926 in |
| Pallet - Metric Cubic Dimension | 1.334 M3 |
| Pallet - Metric Net Weight | 198.84 KG |
| Pallet - Metric Height Dimension | 1.04 M |
| Pallet - Metric Length Dimension | 1.21 M |
| Pallet - Metric Width Dimension | 1.06 M |
| Pallet - Item Quantity | 24 |
| Pallet - Total Unit Quantity | 24 |
| Pallet - Previous Packaging Level Quantity | 24 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 6 |
