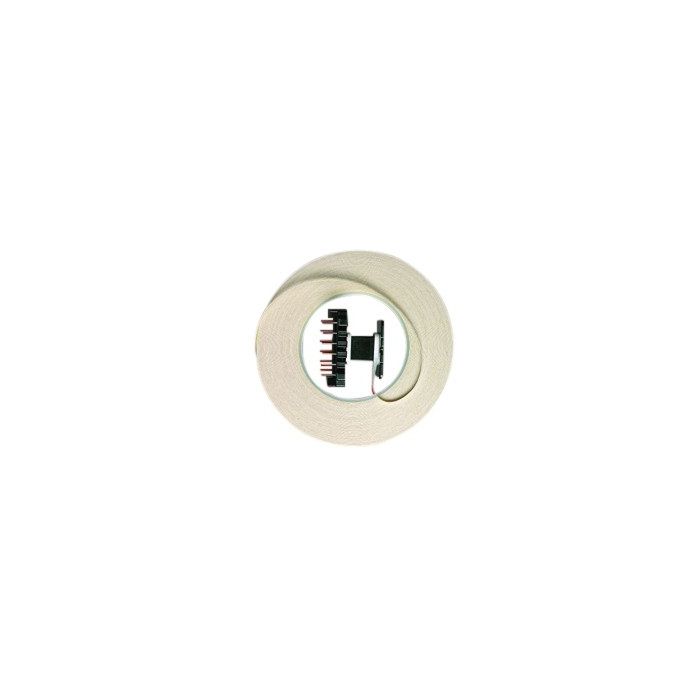

3M™ Composite Film Electrical Tape 44, 23-1/2 in x 90 yd, 3 in Paper Core, Log Roll, 1 Roll/Case
3M™ Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
Special Price
$561.31
Regular Price
$660.36
| UPC | 00051138491345 |
|---|---|
| 3M ID | 7000058469 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Composite Film Electrical Tape 44 features a combination of polyester web and polyester film coated with pressure sensitive rubber thermosetting adhesive. This tape is highly resistant to heat, oxidation, solvents and oils. This excellent dielectric strength tape is tough, puncture resistant and offers outstanding electrical properties. It's ideal for stick wound coils/transformers, as well as protecting start wires, leads, terminal strips, insulation paper and end turns. UL Listed and RoHS 2011/65/EU Compliant .
- The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
- Offers great electrical properties and is puncture-resistant
- Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
- For protecting start wires, leads, terminal strips and insulation paper
- Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7000058469 |
|---|---|
| Part number | 44 LOG 23.5"X90YD |
| Keywords | 3M, 3M tape, electrical tape, 3M electrical tape, composite film electrical tape, 3M tape 44, low halogen tape, edge tear resistant tape, general purpose insulation tape, motor insulation tape, transformer insulation tape, 600V rated tape, heat resistant tape, dielectric strength tape, puncture resistant tape, UL listed tape, RoHS compliant tape, polyester film tape, rubber adhesive tape, pressure sensitive adhesive tape, thermal resistant tape, automotive tape, energy sector tape, electrical equipment manufacturing tape, power distribution tape, powertrain tape |
| Global Product Hierarchy | Tapes > Electrical Tapes > Polyester Electrical Tapes |
| Backing (Carrier) Thickness (Metric) | 889.0 mm |
| Color Family | Transparent |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 5.0 Year |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Customary Length Dimension | 90.0 LNYD |
| Base - Customary Width Dimension | 14.75 INCH |
| Base - Metric Gross Weight | 8.618 KG |
| Base - Metric Length Dimension | 82.296 M |
| Base - Metric Width Dimension | 0.374 M |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 2403.2814542007036 ci |
| Unit of Use - Customary Gross Weight | 18.99943775509275 lbs |
| Unit of Use - Customary Net Weight | 16.666947021176746 lbs |
| Unit of Use - Metric Cubic Dimension | 39382.727 CCM |
| Unit of Use - Metric Net Weight | 7.56 KG |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 2403.2814542007036 ci |
| Shipper - Customary Gross Weight | 18.99943775509275 lbs |
| Shipper - Customary Net Weight | 16.666947021176746 lbs |
| Shipper - Customary Height Dimension | 9.094488188976378 in |
| Shipper - Customary Length Dimension | 31.811023622047244 in |
| Shipper - Customary Width Dimension | 8.307086614173228 in |
| Shipper - Metric Cubic Dimension | 39382.727 CCM |
| Shipper - Metric Weight | 8.618 KG |
| Shipper - Metric Net Weight | 7.56 KG |
| Shipper - Metric Height Dimension | 23.1 CM |
| Shipper - Metric Length Dimension | 80.8 CM |
| Shipper - Metric Width Dimension | 21.1 CM |
| Shipper - Item Quantity | 1 |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 83663.55315387796 ci |
| Pallet - Customary Gross Weight | 485.01697680673067 lbs |
| Pallet - Customary Net Weight | 400.0067285082419 lbs |
| Pallet - Customary Height Dimension | 41.338582677165356 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.371 M3 |
| Pallet - Metric Net Weight | 181.44 KG |
| Pallet - Metric Height Dimension | 1.05 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 24 |
| Pallet - Total Unit Quantity | 24 |
| Pallet - Previous Packaging Level Quantity | 24 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 6 |
