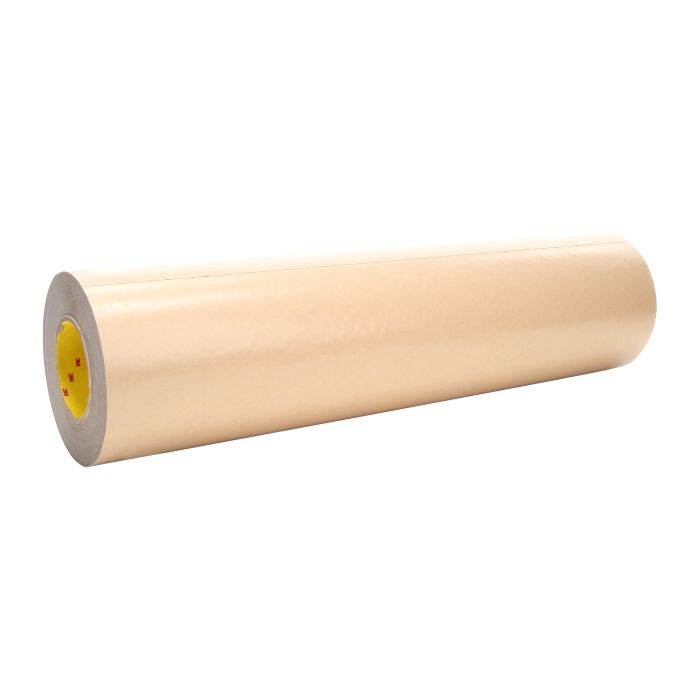

3M™ Adhesive Transfer Tape 9485PC, Clear, 24 in x 60 yd, 5 mil, 1 Roll/Case

Join High and Low Surface Energy Materials

3M™ Adhesive Transfer Tape 9485PC is a 5.0 mils (.127 mm) thick transfer tape consisting of 3M™ Adhesive 350, a modified high performance acrylic adhesive designed for applications requiring high shear strength. The adhesive is a mounted on a tan colored, 58 lb. PCK (polycoated kraft) liner. This liner is moisture resistance and helps to minimize wrinkles. This tape is a high performance, high temperature, solvent-free industry standard tape with excellent chemical (such as gasoline, oil, sodium chloride, mild acids, alkaloids and more) and moisture resistance. It is a fiber reinforced adhesive, a feature that is important for roll stability in narrow widths. This tape is ideal for joining materials that have rougher surfaces.

Recommended Applications

Bonding high and low surface energy materials and powder coated paints
Narrow width automated dispensing
Bonding foams to low surface energy materials (LSE) while offering elevated temperature performance
Gasketing
Labeling

High Temperature Adhesion

3M™Adhesive 350 is a high-tack, high performance acrylic adhesive system featuring high initial adhesion to metals and high surface energy plastics. It offers excellent humidity, water, solvent, chemical and short term heat resistance. The adhesive is designed to provide exceptional shear strength, even at elevated temperatures. Shear strength is a measure of resistance to a sliding force along a plane that is parallel to the direction of the force. Adhesive 350 is formulated for temperate exposure up to 450°F/232°C for short periods of time and up to 300°F/149°C for extended time frames.

What are Adhesive Transfer Tapes?

In general, 3M adhesive transfer tapes are rolls of pressure sensitive adhesive pre-applied to a special release liner. The tape consists of adhesive only, and does not have any type of backing material. For application the tape is positioned adhesive side down to a surface and the liner is removed, exposing the backside of the adhesive to receive the secondary substrate.

• 5.0 mils (.127 mm) thick tape provides high bond to low surface energy substrates and powder coated paints
• 58 lb. PCK (polycoated kraft) paper liner provides moisture resistance and minimizes wrinkles
• Excellent chemical resistance and shear and peel strength even at elevated temperatures
• Designed for short term temperature exposure up to 450°F (232°C) and long term 300°F (149°C)
• Adhesive is fiber reinforced for roll stability in narrow widths and to resist oozing
• Low odor for improved working environment
