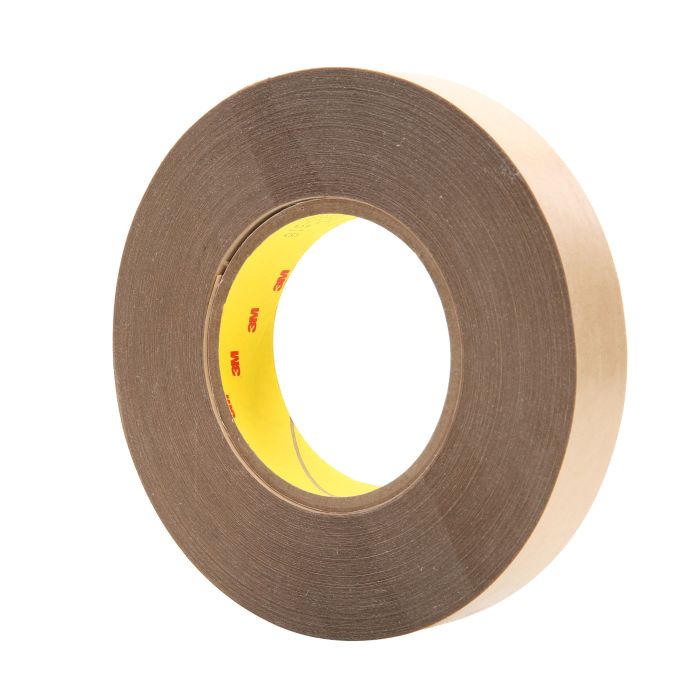

3M™ Adhesive Transfer Tape 9485PC, Clear, 1 in x 60 yd, 5 mil, 36 Roll/Case
| UPC | 00021200634772 |
|---|---|
| 3M ID | 7000123367 |
| Packaging | Case |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Adhesive Transfer Tape 9485PC is a 5.0 mils (.127 mm) thick transfer tape consisting of 3M™ Adhesive 350, a modified high performance acrylic adhesive designed for applications requiring high shear strength. The adhesive is a mounted on a tan colored, 58 lb. PCK (polycoated kraft) liner. This liner is moisture resistance and helps to minimize wrinkles. This tape is a high performance, high temperature, solvent-free industry standard tape with excellent chemical (such as gasoline, oil, sodium chloride, mild acids, alkaloids and more) and moisture resistance. It is a fiber reinforced adhesive, a feature that is important for roll stability in narrow widths. This tape is ideal for joining materials that have rougher surfaces.
Recommended Applications
Bonding high and low surface energy materials and powder coated paints Narrow width automated dispensing Bonding foams to low surface energy materials (LSE) while offering elevated temperature performance GasketingLabeling
High Temperature Adhesion3M™Adhesive 350 is a high-tack, high performance acrylic adhesive system featuring high initial adhesion to metals and high surface energy plastics. It offers excellent humidity, water, solvent, chemical and short term heat resistance. The adhesive is designed to provide exceptional shear strength, even at elevated temperatures. Shear strength is a measure of resistance to a sliding force along a plane that is parallel to the direction of the force. Adhesive 350 is formulated for temperate exposure up to 450°F/232°C for short periods of time and up to 300°F/149°C for extended time frames.
What are Adhesive Transfer Tapes?In general, 3M adhesive transfer tapes are rolls of pressure sensitive adhesive pre-applied to a special release liner. The tape consists of adhesive only, and does not have any type of backing material. For application the tape is positioned adhesive side down to a surface and the liner is removed, exposing the backside of the adhesive to receive the secondary substrate.
- 5.0 mils (.127 mm) thick tape provides high bond to low surface energy substrates and powder coated paints
- 58 lb. PCK (polycoated kraft) paper liner provides moisture resistance and minimizes wrinkles
- Excellent chemical resistance and shear and peel strength even at elevated temperatures
- Designed for short term temperature exposure up to 450°F (232°C) and long term 300°F (149°C)
- Adhesive is fiber reinforced for roll stability in narrow widths and to resist oozing
- Low odor for improved working environment
| 3M ID | 7000123367 |
|---|---|
| Part number | 9485PC |
| Keywords | 3M, 3M Adhesive Transfer Tape, 3M 9485PC, high performance acrylic adhesive, bonding high surface energy materials, bonding low surface energy materials, moisture resistant tape, high temperature tape, chemical resistant tape, adhesive tape for rough surfaces, tape for powder coated paints, fiber reinforced adhesive, adhesive for metals, adhesive for plastics, high shear strength tape, narrow width dispensing tape, automotive adhesive tape, electronics adhesive tape, industrial adhesive tape, marine adhesive tape, woodworking adhesive tape, adhesive tape for commercial vehicles, labeling adhesive, gasketing adhesive, foams adhesive tape, adhesive for elevated temperatures, solvent-free adhesive, adhesive for rough surfaces. |
| Global Product Hierarchy | Tapes > Bonding, Mounting & Transfer Tapes > Adhesive Transfer Tapes |
| Application | Mounting & Trim Attachment |
| Color Family | Transparent |
| Product Number | 9485PC |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 730 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 1 |
| Base - Customary Length Dimension | 6.062007874 |
| Base - Customary Width Dimension | 6.061811024 |
| Base - Metric Gross Weight | 340.194 G |
| Base - Metric Height Dimension | 25.4 MM |
| Base - Metric Length Dimension | 153.975 MM |
| Base - Metric Width Dimension | 153.97 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 36.74672900526903 ci |
| Unit of Use - Customary Gross Weight | 0.7499993882172225 lbs |
| Unit of Use - Customary Net Weight | 0.7419789711189366 lbs |
| Unit of Use - Customary Height Dimension | 1.0 in |
| Unit of Use - Customary Length Dimension | 6.062007874015748 in |
| Unit of Use - Customary Width Dimension | 6.061811023622047 in |
| Unit of Use - Metric Cubic Dimension | 602.171 CCM |
| Unit of Use - Metric Net Weight | 336.556 G |
| Unit of Use - Metric Height Dimension | 25.4 MM |
| Unit of Use - Metric Length Dimension | 153.975 MM |
| Unit of Use - Metric Width Dimension | 153.97 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1791.8035836071672 ci |
| Shipper - Customary Gross Weight | 28.247829653748365 lbs |
| Shipper - Customary Net Weight | 26.711207686319767 lbs |
| Shipper - Customary Height Dimension | 10.0 in |
| Shipper - Customary Length Dimension | 13.385826771653543 in |
| Shipper - Customary Width Dimension | 13.385826771653543 in |
| Shipper - Metric Cubic Dimension | 29362.4 CCM |
| Shipper - Metric Weight | 12.813 KG |
| Shipper - Metric Net Weight | 12.116 KG |
| Shipper - Metric Height Dimension | 25.4 CM |
| Shipper - Metric Length Dimension | 34.0 CM |
| Shipper - Metric Width Dimension | 34.0 CM |
| Shipper - Item Quantity | 36 |
| Shipper - Total Unit Quantity | 36 |
| Shipper - Previous Packaging Level Quantity | 36 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 90803.33121296164 ci |
| Pallet - Customary Gross Weight | 1051.6049906218661 lbs |
| Pallet - Customary Net Weight | 961.6056813301335 lbs |
| Pallet - Customary Height Dimension | 44.881889763779526 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.488 M3 |
| Pallet - Metric Net Weight | 436.177 KG |
| Pallet - Metric Height Dimension | 1.14 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 1296 |
| Pallet - Total Unit Quantity | 1296 |
| Pallet - Previous Packaging Level Quantity | 36 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 9 |
