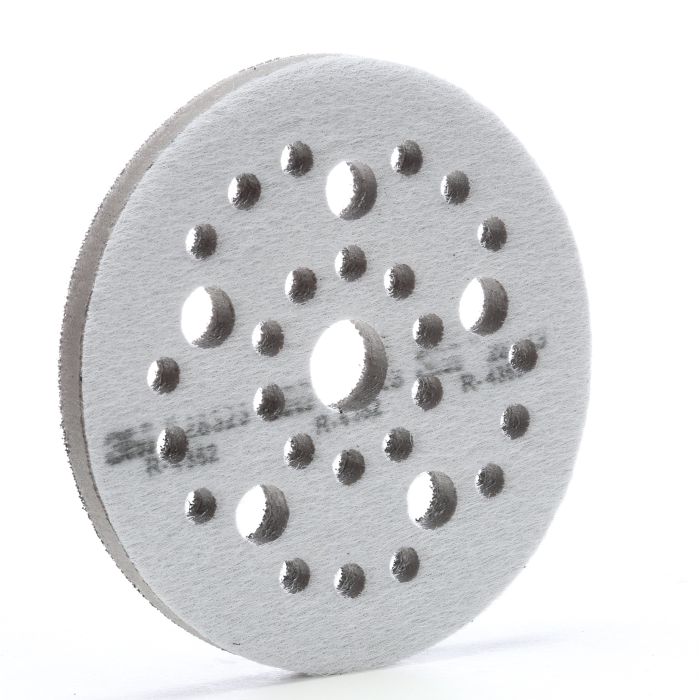

3M Xtract™ Interface Disc Pad 28323, 5 in x 1/2 in x 3/4 in 31 Holes, 10 ea/Case

The 3M™ Interface Pad is a 1/2-inch thick, medium density foam pad that provides additional surface conformability when used with a 3M™ Hookit™ backup pad on a 3M™ Random Orbital Sander. The additional conformability helps when sanding critical surfaces with fine grade abrasives, after leveling and refining sanding steps are complete, but before final surface finishing steps.
Special Price $16.56 Regular Price $19.48
UPC 00051141283234
3M ID 7100009701
Packaging Case
Sorry, We Are Out of Stock
  • Get up to 15% OFF
  • Exclusive Deals and Discounts
  • Secure Shopping Experience
  • Fast and Friendly Customer Support
Conformability Protects Your Tools and Your Work Surface

Placed between the backup pad and the abrasive disc or sheet, the 3M™ Interface Pad provides additional conformability when sanding rounds and profiles, and helps operators reach internal angles.

The Clean Sanding Option – No Alignment Required

Some of these interface pads are designed to work with the 3M Clean Sanding system to maximize dust extraction, and must be used with a 3M™ Clean Sanding Backup Pad on a self-generated or central vacuum tool. The 3M™ Clean Sanding dust-management system evacuates dust from the work surface better than 5 or 6-hole products, dramatically increasing disc life and maximizing cut-rate. Optimized with a self-generated vacuum sanding tool fitted with a Clean Sanding filter bag (sold separately), or a when used with a central vacuum system, the Clean Sanding system provides dust extraction from the air surrounding the tool, as well as directly from the work surface. This reduces loading of the disc and adds life to the abrasive. Additionally, reducing dust in the air improves working conditions.

3M™ Clean Sanding Interface Pad is available for use with 5 inch Clean Sanding Disc Pads and discs or 3x4" Clean Sanding Pads and sheets. Both feature a unique multi-hole pattern designed to maximize dust evacuation, extending the abrasive's life, improving results and keeping the air clean as well. For maximum dust extraction when using 3M™ Clean Sanding Interface Pads, align the holes in the interface pad with the holes in the back up pad, when installing the interface pad. The unique, multi-hole design of 3M™ Clean Sanding Abrasive sanding discs do not require alignment on the backup pad or interface pad, further saving you time and hassle.

The 3M™ Hookit™ System

The Hookit™ attachment system is integrated to make abrasive changes quick and easy, enabling repeated use and reducing material consumption.

3M Science Optimizes Industrial Abrasives

3M gives attention to every detail of the abrasive process, from discs to tools to all the accessories in between. Engineered with quality foam construction, Hookit™ backing and the unique hole design on the Clean Sanding options, 3M™ Interface Pads are an excellent example of how 3M uses science to continually improve abrasive operations and help businesses like yours operate faster, better and more efficiently.


  • Medium density foam provides additional flexibility on contours
  • Ideal for sanding curves, angles and contours
  • Applies effortlessly between Hookit™ discs and Hookit™ back-up pads for quick changeouts
  • May include Clean Sanding hole configuration to clear dust from the work surface, increasing disc life
More Information
3M ID 7100009701
Part number 28323
Keywords Disc Pad, back-up pads, sanding
Global Product Hierarchy Tools & Equipment > Holders & Back-up Pads
Abrasive Attachment Type Hook & Loop
Application Finishing, Polishing, Surface Preparation
Center Hole Diameter (Imperial) 0.75 in
Center Hole Diameter (Metric) 19.05 mm
Color Family Gray
Net Weight (Imperial) 0.04 lb
Net Weight (Metric) 18.14 g
Product Color Gray
Product Type simple
Quantity 0
Trademark 1 3M™
Type Dust Control
Country of Origin United States
Sales Unit EA
SAP Shelf Life In Days 1825
Base - Billing Unit EA
Base - Customary Height Dimension 6.5
Base - Customary Length Dimension 0.5
Base - Customary Width Dimension 6.5
Base - Metric Gross Weight 18.144 G
Base - Metric Height Dimension 165.1 MM
Base - Metric Length Dimension 12.7 MM
Base - Metric Width Dimension 165.1 MM
Base - Item Quantity 1
Base - Unit EA
Consumer - Billing Unit EA
Consumer - Customary Cubic Dimension 21.11421545677737 ci
Consumer - Customary Gross Weight 0.04000067285082419 lbs
Consumer - Customary Net Weight 0.02009954444339529 lbs
Consumer - Customary Height Dimension 6.5 in
Consumer - Customary Length Dimension 0.5 in
Consumer - Customary Width Dimension 6.5 in
Consumer - Metric Cubic Dimension 0.346 CDM
Consumer - Metric Net Weight 9.117 G
Consumer - Metric Height Dimension 165.1 MM
Consumer - Metric Length Dimension 12.7 MM
Consumer - Metric Width Dimension 165.1 MM
Consumer - Item Quantity 1
Consumer - Total Unit Quantity 1
Consumer - Previous Packaging Level Quantity 1
Consumer - Item Unit PADS
Consumer - Unit EA
Shipper - Billing Unit EA
Shipper - Customary Cubic Dimension 278.4589722722753 ci
Shipper - Customary Gross Weight 0.6000982776672368 lbs
Shipper - Customary Net Weight 0.2009954444339529 lbs
Shipper - Customary Height Dimension 5.866141732283465 in
Shipper - Customary Length Dimension 6.889763779527559 in
Shipper - Customary Width Dimension 6.889763779527559 in
Shipper - Metric Cubic Dimension 4563.125 CCM
Shipper - Metric Weight 272.2 G
Shipper - Metric Net Weight 91.17 G
Shipper - Metric Height Dimension 14.9 CM
Shipper - Metric Length Dimension 17.5 CM
Shipper - Metric Width Dimension 17.5 CM
Shipper - Item Quantity 10
Shipper - Total Unit Quantity 10
Shipper - Previous Packaging Level Quantity 10
Shipper - Previous Packaging Level Unit BAG
Shipper - Item Unit PADS
Shipper - Unit CS
Pallet - Billing Unit EA
Pallet - Customary Cubic Dimension 93183.2572326562 ci
Pallet - Customary Gross Weight 189.59754547899473 lbs
Pallet - Customary Net Weight 50.65120473697562 lbs
Pallet - Customary Height Dimension 46.06299212598425 in
Pallet - Customary Length Dimension 48.031496062992126 in
Pallet - Customary Width Dimension 42.125984251968504 in
Pallet - Metric Cubic Dimension 1.527 M3
Pallet - Metric Net Weight 22.975 KG
Pallet - Metric Height Dimension 1.17 M
Pallet - Metric Length Dimension 1.22 M
Pallet - Metric Width Dimension 1.07 M
Pallet - Item Quantity 2520
Pallet - Total Unit Quantity 2520
Pallet - Previous Packaging Level Quantity 252
Pallet - Previous Packaging Level Unit BOX
Pallet - Item Unit PADS
Pallet - Unit PAL
Pallet - Pallet Layer Quantity 7
Pallet - Shipping Container Per Layer Quantity 36
