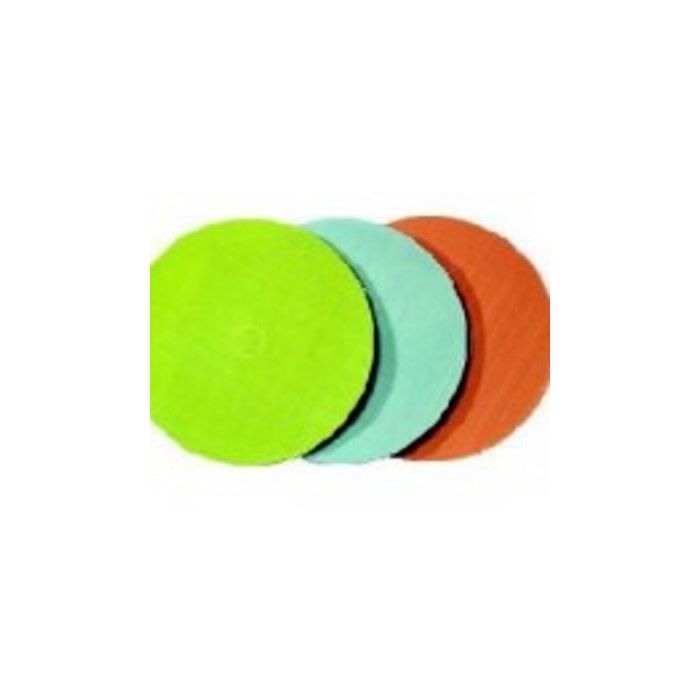

3M™ Trizact™ PSA Film Disc 268XA, A35 3MIL, Green, 5 in x NH, Die 500X, 50/Carton, 100 ea/Case
| UPC | 00051111546147 |
|---|---|
| 3M ID | 7010359511 |
| Packaging | Carton |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Trizact™ PSA Film Disc 268XA features a polyester backing, because it is water-resistant and can be run wet or dry. This disc is commonly used for damp sanding on a variety of substrates, including acrylic products, solid surface materials, and glass. Using a lubricant like water helps the disc run cool and wash away debris that could warp or discolor the substrate. Depending on the project or application, 3M™ Trizact™ PSA Film Disc 268XA typically is used during the middle of a sequence to help bring the workpiece one step closer to the matte, semi-gloss or high gloss finish desired. While it may be run damp, the disc requires little water for effective results.
3M™ Trizact™ PSA Film Disc 268XA uses 3M microreplication technology to produce an engineered surface of patterned, microscopic, three-dimensional structures resembling pyramids. While conventionally coated abrasives often have erratically spaced mineral, Trizact™ abrasives focus on uniformity. As pyramids wear, fresh, sharp mineral is exposed to produce a consistent cut and a predictable, fine finish. Altogether, this means fewer scraps and discards as a consequence of inconsistent results. Ongoing sharp cutting action minimizes the need to incorporate other abrasives in the sequence, thereby reducing processing steps and enhancing productivity.
PSA AttachmentThe pressure-sensitive adhesive (PSA) on the back of 3M™ Trizact™ PSA Film Disc 268XA helps facilitate easy disc to tool attachment. Attaching them to a disc pad is as simple as pressing on a sticker. The PSA disc can be peeled off of the disc pad just as easily, leaving a clean surface for the next disc. Disc rolls offer the convenience of quickly tearing off a disc and eliminate the need to remove individual disc liners. PSA discs are used in conjunction with a PSA or 3M™ Stikit™ backup pad (also called a disc pad and sold separately) that is attached to a random orbital sander.
Great Versatility3M™ Trizact™ PSA Film Disc 268XA is available in a range of grades A5 to A35, so operators can choose the right grade for their unique application; the lower the A-grade, the finer the grade. So, operators should select a smaller grade, like A5, for a fine finish and a larger grade, like A35, for a coarser finish. Discs are color-coded by grade, to reduce the risk of mistakenly selecting the wrong grade in a sequence.
Regardless of the grade selected, operators can rely on great performance with this 3M™ Trizact™ disc – using it as a go-to abrasive for fast cutting action and consistent finishes, part after part.
- Color-coded by grade to help identify steps during multi-step sequences
- Features 3M microreplicated technology for a fast, sustained cut and consistent finish
- Pressure-sensitive adhesive (PSA) provides swift and easy disc to tool attachment
- Water-resistant polyester backing means disc may be run wet or dry
- Great for polishing and finishing on a variety of substrates, from glass to acrylic
| 3M ID | 7010359511 |
|---|---|
| Keywords | 3M, Trizact PSA Film Disc, Trizact, polishing disc, finishing disc, waterproof polyester backing, 3M microreplication technology, pressure-sensitive adhesive, PSA attachment, water-resistant disc, run wet or dry, acrylic polishing, glass polishing, solid surface materials, damp sanding, consistent finish, 3M abrasives, color-coded by grade, fast cutting action, predictable finish, uniform surface, minimal debris, reduce processing steps, versatile abrasive, various grades, A5 grade, A35 grade, assembly use, manufacturing use, transportation use, metalworking use, personal recreation vehicles, two-wheel vehicles, woodworking use, random orbital sander pad, 3M Stikit backup pad, engineered surface, microscopic pyramids, fine finish, coarse finish, enhanced productivity, abrasive disc, multi-step sequences. |
| Global Product Hierarchy | Abrasives > Abrasive Discs > Film Discs |
| Abrasive Material | Aluminum Oxide |
| Application | Finishing, Sanding |
| Backing Material | Film |
| Backing Thickness (Imperial) | 3.0 mil |
| Center Hole Diameter (Imperial) | 0.0 NP |
| Center Hole Diameter (Metric) | 0.0 NP |
| Color Family | Green |
| Grit | Non Pertinent |
| Product Color | Green |
| Product Number | 268XA |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | 3M™ |
| Trademark 2 | Trizact™ |
| Country of Origin | United States |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | EA |
| Base - Metric Gross Weight | 13.608 G |
| Base - Metric Height Dimension | 2.54 MM |
| Base - Metric Length Dimension | 127.0 MM |
| Base - Metric Width Dimension | 127.0 MM |
| Base - Item Quantity | 1 |
| Base - Unit | EA |
| Unit of Use - Billing Unit | EA |
| Unit of Use - Customary Cubic Dimension | 2.5019735078840237 ci |
| Unit of Use - Customary Gross Weight | 0.030000504638118142 lbs |
| Unit of Use - Customary Net Weight | 0.02998286765714335 lbs |
| Unit of Use - Customary Height Dimension | 0.1 in |
| Unit of Use - Customary Length Dimension | 5.0 in |
| Unit of Use - Customary Width Dimension | 5.0 in |
| Unit of Use - Metric Cubic Dimension | 0.041 CDM |
| Unit of Use - Metric Net Weight | 13.6 G |
| Unit of Use - Metric Height Dimension | 2.54 MM |
| Unit of Use - Metric Length Dimension | 127.0 MM |
| Unit of Use - Metric Width Dimension | 127.0 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | DISC |
| Unit of Use - Unit | EA |
| Inner - Billing Unit | EA |
| Inner - Customary Cubic Dimension | 28.334605881810187 ci |
| Inner - Customary Gross Weight | 1.5200872977647308 lbs |
| Inner - Customary Net Weight | 1.4991433828571676 lbs |
| Inner - Customary Height Dimension | 0.5118110236220472 in |
| Inner - Customary Length Dimension | 7.519685039370079 in |
| Inner - Customary Width Dimension | 7.362204724409449 in |
| Inner - Metric Cubic Dimension | 464.321 CCM |
| Inner - Metric Net Weight | 680.0 G |
| Inner - Metric Height Dimension | 1.3 CM |
| Inner - Metric Length Dimension | 19.1 CM |
| Inner - Metric Width Dimension | 18.7 CM |
| Inner - Item Quantity | 50 |
| Inner - Total Unit Quantity | 50 |
| Inner - Previous Packaging Level Quantity | 50 |
| Inner - Item Unit | DISC |
| Inner - Previous Packaging Level Unit | DISC |
| Inner - Unit | KAR |
| Shipper - Billing Unit | EA |
| Shipper - Customary Cubic Dimension | 308.71301900084114 ci |
| Shipper - Customary Gross Weight | 3.2496137446050954 lbs |
| Shipper - Customary Net Weight | 2.9982867657143353 lbs |
| Shipper - Customary Height Dimension | 6.062992125984252 in |
| Shipper - Customary Length Dimension | 8.858267716535433 in |
| Shipper - Customary Width Dimension | 5.748031496062992 in |
| Shipper - Metric Cubic Dimension | 5058.9 CCM |
| Shipper - Metric Weight | 1.474 KG |
| Shipper - Metric Net Weight | 1.36 KG |
| Shipper - Metric Height Dimension | 15.4 CM |
| Shipper - Metric Length Dimension | 22.5 CM |
| Shipper - Metric Width Dimension | 14.6 CM |
| Shipper - Item Quantity | 100 |
| Shipper - Total Unit Quantity | 100 |
| Shipper - Previous Packaging Level Quantity | 2 |
| Shipper - Previous Packaging Level Unit | CTNS |
| Shipper - Item Unit | DISC |
| Shipper - Unit | CS |
| Pallet - Billing Unit | EA |
| Pallet - Customary Cubic Dimension | 93183.2572326562 ci |
| Pallet - Customary Gross Weight | 877.4398034958127 lbs |
| Pallet - Customary Net Weight | 776.5562723200128 lbs |
| Pallet - Customary Height Dimension | 46.06299212598425 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.527 M3 |
| Pallet - Metric Net Weight | 352.24 KG |
| Pallet - Metric Height Dimension | 1.17 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 25900 |
| Pallet - Total Unit Quantity | 25900 |
| Pallet - Previous Packaging Level Quantity | 259 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | DISC |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 7 |
| Pallet - Shipping Container Per Layer Quantity | 37 |
