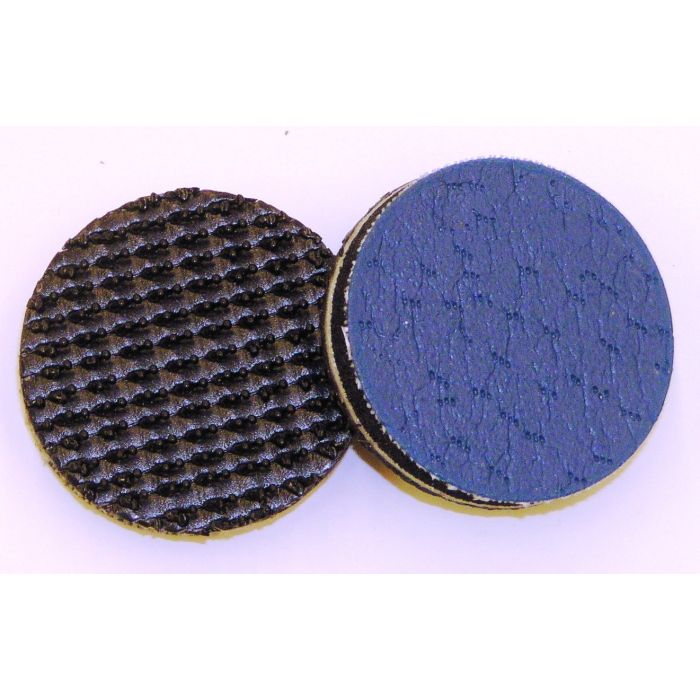

3M™ Dual Lock PSA Soft Disc Pad 20247, 1-1/4 in, 10/Bag, 20 ea/Case

3M™ Dual Lock™ PSA Soft Disc Pad PN 20247 is designed to replace the original disc pad and rubber skirt provided with the PN 3125 nib sanding tool, and is designed specifically for secure pad attachment in extreme wet sanding applications. The vinyl pad holds pressure-sensitive adhesive 3M™ Trizact™ Finesse-it™ Film Discs.
Special Price $9.10 Regular Price $10.71
UPC 00051141202471
3M ID 7100123076
Packaging Bag
Sorry, We Are Out of Stock
  • Get up to 15% OFF
  • Exclusive Deals and Discounts
  • Secure Shopping Experience
  • Fast and Friendly Customer Support
Solid, but Soft, Support

Ideally suited for high-volume production environments, 3M™ Dual Lock™ PSA Soft Disc Pad PN 20247 provides a secure, conformable backup to Trizact microfinishing discs to remove minor defects like nibs, scratches, marks, and blemishes in clear coat.

Extreme wet sanding applications – in which the abrasive, pad and tool are continuously subjected to water – can test the limits of any attachment method so this dual lock disc pad system was developed to provide a pad attachment strong enough to withstand the demands of a heavy-duty industrial wet sanding application.

Solving the Attachment Challenge

The Dual Lock™ snap-locking system has holding power 5 times stronger than conventional hook and loop. Interlocking mushroom-shaped stems "snap" together and provide a definite tactile response. When two pieces of Dual Lock™ fasteners are pressed together, the stems flex and the mushroom heads slide past each other. After passing the opposing mating piece, the stems snap back into their original position and the opposing mushroom heads interlock. These fasteners provide high tensile strength but can be opened by simply cleaving or peeling open the closure. The Dual Lock fastening system is durable enough to be opened and closed 1,000 times before losing 50% of its original strength.

The Science of a Perfect Finish

3M™ Trizact™ abrasives discs are used by most automotive manufacturers worldwide, as well as automotive collision shops, car and motorcycle dealerships, and detail shops. This duo, when used with 3M™ Nib Sander PN 3125, are part of the 3M™ Trizact™ Finesse-it™ Paint Defect Repair System.


  • Soft density disc pad provides cushion and conformability for finishing fine surfaces
  • Dual Lock attachment is stronger in strength than typical hook-and-loop fasteners
  • Mushroom-shaped stems snap in place to lock the pad in place
  • Small diameter for repairing small defects in paint
  • Drives Trizact film discs to level most defects
  • Maximum rpm of 7500
More Information
3M ID 7100123076
Part number 20247
Keywords Disc Pad, PSA Disc Pad, Back-up Pad, Back up Pad
Global Product Hierarchy Tools & Equipment > Holders & Back-up Pads
Abrasive Attachment Type PSA
Color Family Black
Product Color Black
Product Type simple
Quantity 0
Trademark 1 3M™
Type Interface Pad
Country of Origin United States
SAP Shelf Life In Days 1825
Base - Billing Unit EA
Base - Metric Gross Weight 0.907 G
Base - Metric Height Dimension 2.54 MM
Base - Metric Length Dimension 31.75 MM
Base - Metric Width Dimension 31.75 MM
Base - Item Quantity 1
Base - Unit EA
Unit of Use - Billing Unit EA
Unit of Use - Customary Gross Weight 0.0019995927180168397 lbs
Unit of Use - Customary Net Weight 0.0019995927180168397 lbs
Unit of Use - Customary Height Dimension 0.1 in
Unit of Use - Customary Length Dimension 1.25 in
Unit of Use - Customary Width Dimension 1.25 in
Unit of Use - Metric Cubic Dimension 2560.479 MMQ
Unit of Use - Metric Net Weight 0.907 G
Unit of Use - Metric Height Dimension 2.54 MM
Unit of Use - Metric Length Dimension 31.75 MM
Unit of Use - Metric Width Dimension 31.75 MM
Unit of Use - Item Quantity 1
Unit of Use - Total Unit Quantity 1
Unit of Use - Previous Packaging Level Quantity 1
Unit of Use - Item Unit PADS
Unit of Use - Unit EA
Inner - Billing Unit EA
Inner - Customary Cubic Dimension 35.999981448781796 ci
Inner - Customary Gross Weight 0.05399782187694207 lbs
Inner - Customary Net Weight 0.019995927180168398 lbs
Inner - Customary Height Dimension 1.0 in
Inner - Customary Length Dimension 6.0 in
Inner - Customary Width Dimension 6.0 in
Inner - Metric Cubic Dimension 589.934 CCM
Inner - Metric Net Weight 9.07 G
Inner - Metric Height Dimension 2.54 CM
Inner - Metric Length Dimension 15.24 CM
Inner - Metric Width Dimension 15.24 CM
Inner - Item Quantity 10
Inner - Total Unit Quantity 10
Inner - Previous Packaging Level Quantity 10
Inner - Item Unit PADS
Inner - Previous Packaging Level Unit PADS
Inner - Unit BAG
Shipper - Billing Unit EA
Shipper - Customary Cubic Dimension 182.55118793702155 ci
Shipper - Customary Gross Weight 0.3999979100177545 lbs
Shipper - Customary Net Weight 0.039991854360336795 lbs
Shipper - Customary Height Dimension 4.6 in
Shipper - Customary Length Dimension 6.2996062992125985 in
Shipper - Customary Width Dimension 6.2996062992125985 in
Shipper - Metric Cubic Dimension 2991.478 CCM
Shipper - Metric Weight 181.436 G
Shipper - Metric Net Weight 18.14 G
Shipper - Metric Height Dimension 11.684 CM
Shipper - Metric Length Dimension 16.001 CM
Shipper - Metric Width Dimension 16.001 CM
Shipper - Item Quantity 20
Shipper - Total Unit Quantity 20
Shipper - Previous Packaging Level Quantity 2
Shipper - Previous Packaging Level Unit BAG
Shipper - Item Unit PADS
Shipper - Unit CS
Pallet - Billing Unit EA
Pallet - Customary Cubic Dimension 95013.96955549816 ci
Pallet - Customary Gross Weight 186.998295407835 lbs
Pallet - Customary Net Weight 15.117097318017056 lbs
Pallet - Customary Height Dimension 47.12992125984252 in
Pallet - Customary Length Dimension 48.0 in
Pallet - Customary Width Dimension 42.0 in
Pallet - Metric Cubic Dimension 1.557 M3
Pallet - Metric Net Weight 6.857 KG
Pallet - Metric Height Dimension 119.71 CM
Pallet - Metric Length Dimension 121.92 CM
Pallet - Metric Width Dimension 106.68 CM
Pallet - Item Quantity 7560
Pallet - Total Unit Quantity 7560
Pallet - Previous Packaging Level Quantity 378
Pallet - Previous Packaging Level Unit BOX
Pallet - Item Unit PADS
Pallet - Unit PAL
Pallet - Pallet Layer Quantity 9
Pallet - Shipping Container Per Layer Quantity 42
