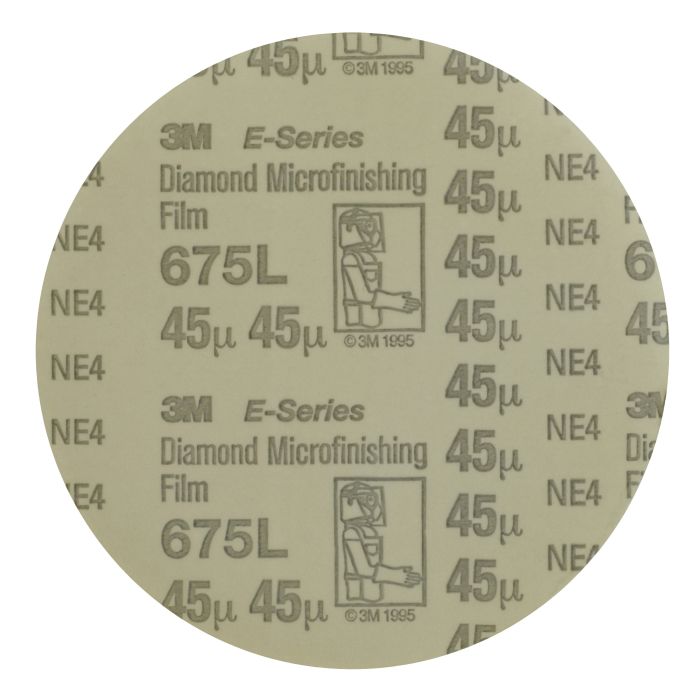

3M™ Diamond Microfinishing Film PSA Disc 675L, 45 Mic, 3 in x 1/2 in, Die 300DN, 100/Bag, 1000 ea/Case

Designed with a strong polyester film backing and sharp diamond mineral, 3M™ Diamond Microfinishing Film 675L delivers fine finishes on hard metals, thermal spray coating, ceramics, carbides, chilled iron and granite.
Special Price $3.73 Regular Price $4.39
UPC 00638060061640
3M ID 7100189485
Packaging Bag
Sorry, We Are Out of Stock
  • Get up to 15% OFF
  • Exclusive Deals and Discounts
  • Secure Shopping Experience
  • Fast and Friendly Customer Support
Diamond Mineral: Sharp Cut, Fine Finishes

3M™ Diamond Microfinishing Film PSA Disc 675L was designed for and fast finish reduction on hard materials – it's a disc that helps operators swiftly and effectively remove thermal spray coatings, ceramics, carbides, chilled iron and granite. Spanning markets, 675L is commonly used in the transportation, general industrial, precision grinding and finishing and aerospace industries.

Diamond cuts well when moderate to medium pressure is applied. It offers an efficient alternative in most applications except those requiring the finest possible finishes. Altogether, diamond mineral renders this disc a great option for tough coating and hard to grind material removal.

Disc 675L is available in grades 125 and 74 micron to refine thermal sprayed surfaces and 45, 30, 20 and 9 micron for finer finishes. The disc comes in a range of grades, so operators can choose a disc that's tailored to their unique project needs.

Polyester-Backed Abrasive May Be Run Wet or Dry

The polyester backing on 3M™ Microfinishing PSA Film Disc 675L is water resistant, so the disc may be run wet if desired. Adding a lubricant like water can help minimize build up and wash away swarf, which prevents the abrasive from getting clogged; it helps keep the abrasive cut sharp and run cool.

Pressure Sensitive Adhesive (PSA) for Easy Disc and Tool Attachment

A pressure sensitive adhesive (PSA) backing was engineered in the design of 675L, so disc to tool attachment would be swift and easy. The PSA backing holds the disc securely in place during use, and removes cleanly from the backup pad (sold separately), leaving an uncontaminated surface for the next disc. It's designed for use with orbital and random orbital sanders.

Overall, this micron-graded diamond abrasive delivers the desired finish without compromising the integrity of the substrate. Its strength and versatility make it a great disc for finishing.


  • Micron-graded diamond mineral delivers close tolerance precision finishes
  • Great for medium stock removal
  • May be run wet or dry
  • Color-coded by grade to reduce risk for error
  • Available in a range of grades, so operators can choose the right disc for their unique application
More Information
3M ID 7100189485
Keywords 3M, Diamond Microfinishing Film, PSA Disc, 675L, fine finishes, hard metals, thermal spray coating removal, ceramic grinding, carbide polishing, chilled iron finishing, granite sanding, micron-graded diamond abrasive, precision finishes, medium stock removal, wet or dry sanding, color-coded grades, transportation industry, general industrial applications, precision grinding, aerospace industry, polyester backing, pressure sensitive adhesive, PSA attachment, orbital sanders, random orbital sanders, abrasive disc, manufacturing applications, automotive industry, metalworking, woodworking, body in white assembly, finishing tools
Global Product Hierarchy Abrasives > Abrasive Discs > Film Discs
Abrasive Material Diamond
Backing Material Film
Center Hole Diameter (Imperial) 0.0 NP
Center Hole Diameter (Metric) 0.0 NP
Grit Non Pertinent
Product Number 675L
Product Type simple
Quantity 0
Trademark 1 3M™
Country of Origin United States
SAP Shelf Life In Days 1825
Base - Billing Unit EA
Base - Metric Gross Weight 2.532 G
Base - Metric Length Dimension 0.012 M
Base - Metric Width Dimension 0.076 M
Base - Item Quantity 1
Base - Unit EA
Unit of Use - Billing Unit EA
Unit of Use - Customary Cubic Dimension 0.6417256929002046 ci
Unit of Use - Customary Gross Weight 0.0055821044785211 lbs
Unit of Use - Customary Net Weight 0.004997879483731175 lbs
Unit of Use - Metric Cubic Dimension 10.516 CCM
Unit of Use - Metric Net Weight 2.267 G
Unit of Use - Item Quantity 1
Unit of Use - Total Unit Quantity 1
Unit of Use - Previous Packaging Level Quantity 1
Unit of Use - Item Unit EACH
Unit of Use - Unit EA
Inner - Billing Unit EA
Inner - Customary Cubic Dimension 21.529176916621548 ci
Inner - Customary Gross Weight 0.5079979630168823 lbs
Inner - Customary Net Weight 0.49978794837311746 lbs
Inner - Customary Height Dimension 0.7086614173228346 in
Inner - Customary Length Dimension 5.511811023622047 in
Inner - Customary Width Dimension 5.511811023622047 in
Inner - Metric Cubic Dimension 352.8 CCM
Inner - Metric Net Weight 226.7 G
Inner - Metric Height Dimension 1.8 CM
Inner - Metric Length Dimension 14.0 CM
Inner - Metric Width Dimension 14.0 CM
Inner - Item Quantity 100
Inner - Total Unit Quantity 100
Inner - Previous Packaging Level Quantity 100
Inner - Item Unit EACH
Inner - Previous Packaging Level Unit EACH
Inner - Unit BAG
Shipper - Billing Unit EA
Shipper - Customary Cubic Dimension 641.7322834645669 ci
Shipper - Customary Gross Weight 5.5821044785211 lbs
Shipper - Customary Net Weight 4.997879483731174 lbs
Shipper - Customary Height Dimension 6.417322834645669 in
Shipper - Customary Length Dimension 10.0 in
Shipper - Customary Width Dimension 10.0 in
Shipper - Metric Cubic Dimension 10516.108 CCM
Shipper - Metric Weight 2532.0 G
Shipper - Metric Net Weight 2267.0 G
Shipper - Metric Height Dimension 16.3 CM
Shipper - Metric Length Dimension 25.4 CM
Shipper - Metric Width Dimension 25.4 CM
Shipper - Item Quantity 1000
Shipper - Total Unit Quantity 1000
Shipper - Previous Packaging Level Quantity 10
Shipper - Previous Packaging Level Unit BAG
Shipper - Item Unit EACH
Shipper - Unit CS
Pallet - Total Unit Quantity 198000
Pallet - Previous Packaging Level Quantity 198
Pallet - Previous Packaging Level Unit BOX
Pallet - Item Unit EACH
Pallet - Pallet Layer Quantity 6
Pallet - Shipping Container Per Layer Quantity 33
