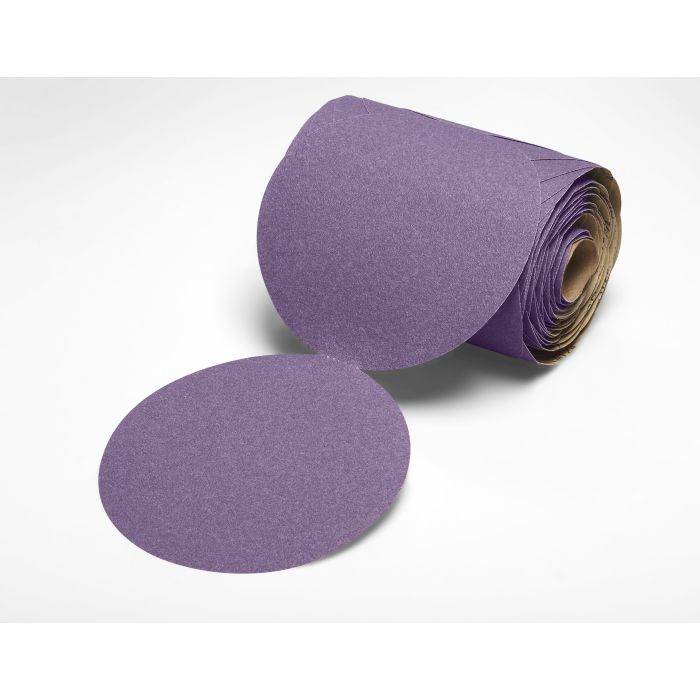

3M™ Cubitron™ II Stikit™ Film Disc Roll 775L, 320+, 5 in x NH, Die 500X, 100 Discs/Roll, 4 Rolls/Case

3M™ Cubitron™ II Stikit™ Film Disc 775L features 3M Precision Shaped Ceramic Grain, a revolutionary advancement in abrasive technology. The triangular shaped ceramic mineral is designed to slice through the substrate, rather than gouging or “plowing” like conventional abrasives, resulting in a disc that cuts up to 2x as fast and lasts up to 6x as long as conventional abrasives.
Special Price $97.45 Regular Price $114.65
UPC 00076308470845
3M ID 7100145417
Packaging Roll
Sorry, We Are Out of Stock
  • Get up to 15% OFF
  • Exclusive Deals and Discounts
  • Secure Shopping Experience
  • Fast and Friendly Customer Support

These discs are ideal for a broad range of applications focused primarily on stock removal, and are effective on a wide variety of substrates, including metals, composites, gelcoat, and whitewood. The film backing offers greater tear resistance than paper discs, for additional durability and edge retention. For best results, pair with 3M™ Elite Random Orbital Sanders.

3M™ Stikit™ system eliminates the time-consuming task of applying adhesive to the disc backing. These high-quality, coated abrasive products come ready to use with a pressure sensitive adhesive coating on the backside so that attaching them to your disc pad is as simple as pressing on a sticker. And because the adhesive is pressure sensitive, the disc can be peeled off of the disc pad just as easily, leaving a clean surface for your next disc. A Stikit™ disc must be pressed onto a Stikit backup pad (also called a disc pad and sold separately) that is attached to a disc sander, random orbital sander, or stationary disc sander.


  • Revolutionary 3M Precision Shaped Grain technology provides fast cut and long life
  • Cuts up to 2x as fast as conventional abrasives
  • Film backing for greater tear resistance and edge retention
  • Ideal for a wide variety of substrates and applications focused primarily on stock removal
  • 3M™ Stikit™ attachment makes changing discs fast and easy
More Information
3M ID 7100145417
Keywords Cubitron, Cubitron 2, Cubitron, Cubitron 2, PSA disc, 775L
Global Product Hierarchy Abrasives > Abrasive Discs > Film Discs
Abrasive Material Precision Shaped Ceramic
Application Finishing, Sanding, Surface Preparation
Backing Material Film
Backing Thickness (Imperial) 3.0 mil
Bond Type Resin
Center Hole Diameter (Imperial) 0.0 NP
Center Hole Diameter (Metric) 0.0 NP
Color Family Purple
Grit 320+
Product Color Purple
Product Number 775L
Product Type simple
Quantity 0
Trademark 1 3M™
Trademark 2 Cubitron™
Country of Origin United States
Sales Unit RO
SAP Shelf Life In Days 1825
Base - Billing Unit ROL
Base - Customary Height Dimension 6.125
Base - Customary Length Dimension 3.25
Base - Customary Width Dimension 3.25
Base - Metric Gross Weight 342.008 G
Base - Metric Height Dimension 155.575 MM
Base - Metric Length Dimension 82.55 MM
Base - Metric Width Dimension 82.55 MM
Base - Item Quantity 1
Base - Unit ROL
Consumer - Billing Unit ROL
Consumer - Customary Cubic Dimension 64.69529868193595 ci
Consumer - Customary Gross Weight 0.7539985736532561 lbs
Consumer - Customary Net Weight 0.7319347104537935 lbs
Consumer - Customary Height Dimension 6.125 in
Consumer - Customary Length Dimension 3.25 in
Consumer - Customary Width Dimension 3.25 in
Consumer - Metric Cubic Dimension 1060.166 CCM
Consumer - Metric Net Weight 332.0 G
Consumer - Metric Height Dimension 155.575 MM
Consumer - Metric Length Dimension 82.55 MM
Consumer - Metric Width Dimension 82.55 MM
Consumer - Item Quantity 1
Consumer - Total Unit Quantity 1
Consumer - Previous Packaging Level Quantity 1
Consumer - Item Unit RLS
Consumer - Unit ROL
Shipper - Billing Unit ROL
Shipper - Customary Cubic Dimension 440.3540499994386 ci
Shipper - Customary Gross Weight 3.3999690074151823 lbs
Shipper - Customary Net Weight 2.927738841815174 lbs
Shipper - Customary Height Dimension 4.3700787401574805 in
Shipper - Customary Length Dimension 12.992125984251969 in
Shipper - Customary Width Dimension 7.755905511811024 in
Shipper - Metric Cubic Dimension 7216.11 CCM
Shipper - Metric Weight 1542.2 G
Shipper - Metric Net Weight 1328.0 G
Shipper - Metric Height Dimension 11.1 CM
Shipper - Metric Length Dimension 33.0 CM
Shipper - Metric Width Dimension 19.7 CM
Shipper - Item Quantity 4
Shipper - Total Unit Quantity 4
Shipper - Previous Packaging Level Quantity 4
Shipper - Previous Packaging Level Unit RLS
Shipper - Item Unit RLS
Shipper - Unit CS
Pallet - Billing Unit ROL
Pallet - Customary Cubic Dimension 90010.02253973013 ci
Pallet - Customary Gross Weight 617.2943341176572 lbs
Pallet - Customary Net Weight 500.6433419503948 lbs
Pallet - Customary Height Dimension 44.488188976377955 in
Pallet - Customary Length Dimension 48.031496062992126 in
Pallet - Customary Width Dimension 42.125984251968504 in
Pallet - Metric Cubic Dimension 1.475 M3
Pallet - Metric Net Weight 227.088 KG
Pallet - Metric Height Dimension 1.13 M
Pallet - Metric Length Dimension 1.22 M
Pallet - Metric Width Dimension 1.07 M
Pallet - Item Quantity 684
Pallet - Total Unit Quantity 684
Pallet - Previous Packaging Level Quantity 171
Pallet - Previous Packaging Level Unit BOX
Pallet - Item Unit RLS
Pallet - Unit PAL
Pallet - Pallet Layer Quantity 9
Pallet - Shipping Container Per Layer Quantity 19
